› 标准DMX512信号，完全电气隔离输出
› 24个通道推杆，6集控推杆，1个总控推杆
› 每个推杆均配有点控按键
› PAGE A/B翻页支持48路DMX操控
› RS232连接中控实现远程调用集控
› 支持4台主从串联，最多可扩展192个通道
› 支持掉电记忆保护
› 3芯DMX输入及输出
› 1路USB-A 5V供电输出
› 航空头AC 88-256V输入及环出
› 适用于标准19英寸6U机架安装
48-ch DMX Console
LA-R480 is a Zero-basis operatable standard DMX512 light console of 24 channel sliders and Page A/B switch to control 48 channels in total.
Interface
LA-R480 supports AC 88-256V 50/60Hz input and loop output, RS232 remote control, RJ45 serial link ports and DMX sockets of both 3-pin male and female.
Submaster and Master Control
LA-R480 provides 6x Submaster sliders to group any of the 48 channels, and a Master slider to control all connected lights. The LCD displays exact values of every DMX channel.
Serial Connection to Max 192-ch
You can connect up tp 4x LA-R480 by RJ45 cables, to expand DMX channels to Max 192. The Master unit is in charge of DMX 1-48, and the Slave units are DMX 49-96, 97-144 and 145-192.
通道 | 48 |
集控 | 6 |
总控 | 1 |
DMX接口 | 3-pin XLR母头 x1; 公头x1 |
窜联扩展 | 4台窜联，多达192通道控制 |
供电 | PowerCON AC 88-256V 50/60Hz输入×1，环出×1 |

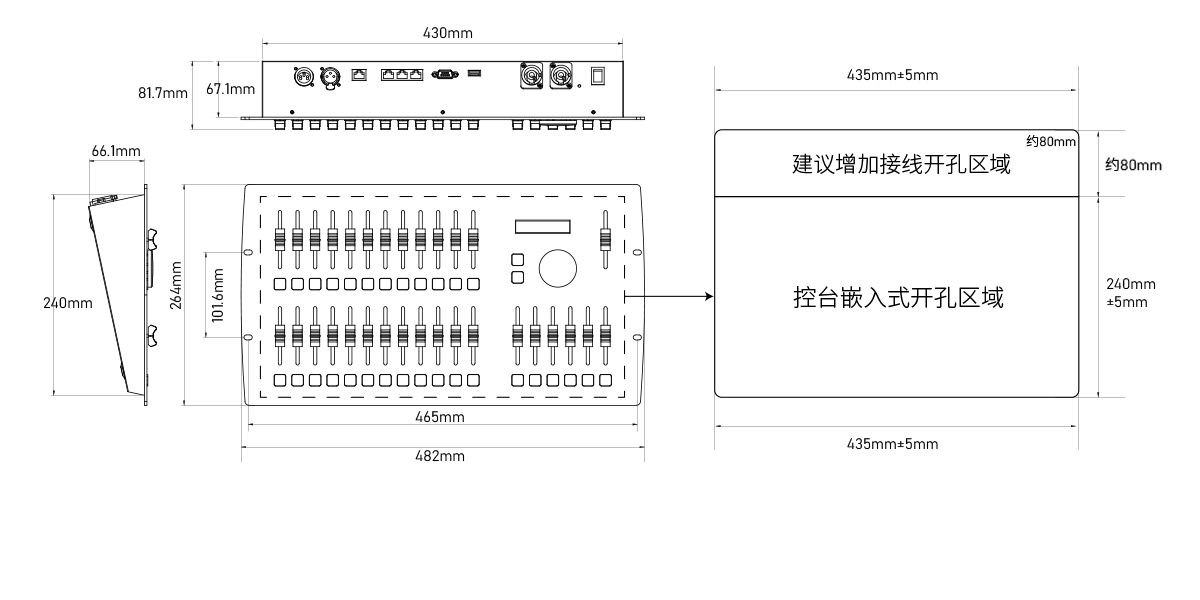

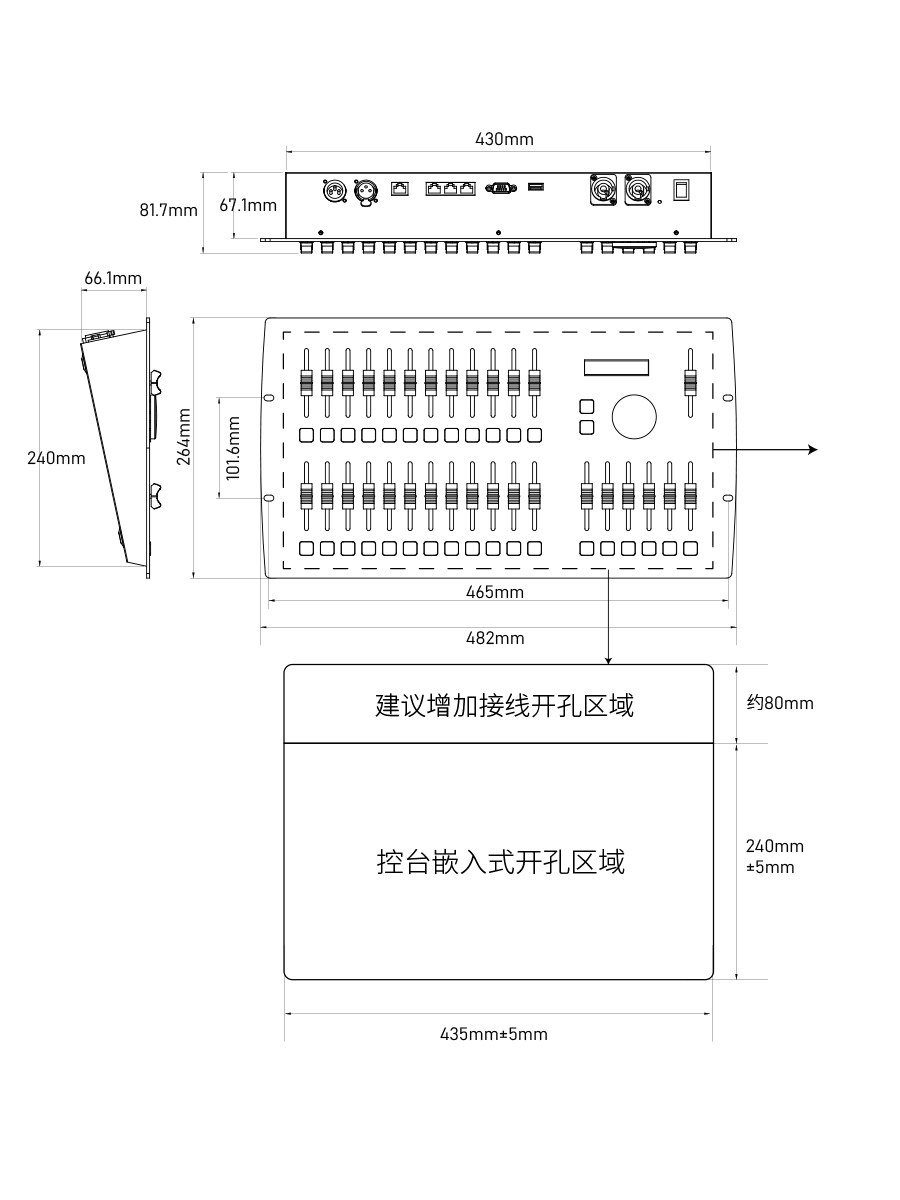

整机尺寸 | 482×265×75mm |
净重 | 2.65kg |
